Ultrasonic Metal Welder

Sibas Ultrasonics manufactures ultrasonic metal welding systems in frequencies of 20 kHz and 35 kHz with available power supplies ranging from 600 to 3000watts

Ultrasonic Metal Welding is the ideal process for bonding conductive materials such as copper, aluminium, brass, gold, silver and other non-ferrous metals.

Excellent welds are achieved with otherwise difficult applications, such as welding materials that are dissimilar in thickness and composition.

The process is environmentally green as no solders, flux or braze material are required.

Ultrasonic metal welding is a very efficient process with short weld times and low energy consumption.

The process is a solid state welds o that components are not annealed and no harmful intermetallic formed during welding.

The ultrasonic weld is extremely reliable with built-in process monitoring to help assure zero rejects.

Weld tooling typically lasts for several hundred-thousand cycles with no maintenance.

Large weld areas can be produced with our high power supply. Key equipment features include automatic frequency tuning, digital amplitude control, soft-start overload protection, upper and lower weld limit settings.

Sibas also offers free application evaluation and analysis in our fully equipped applications laboratory.

Typical applications

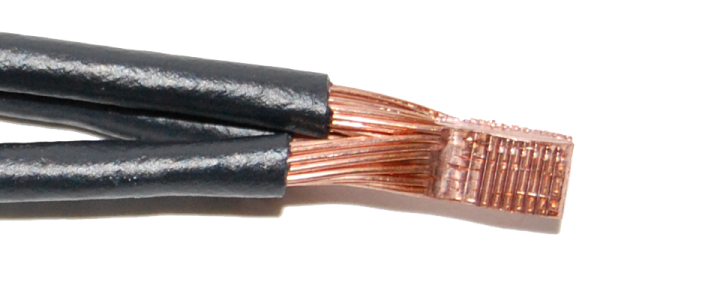

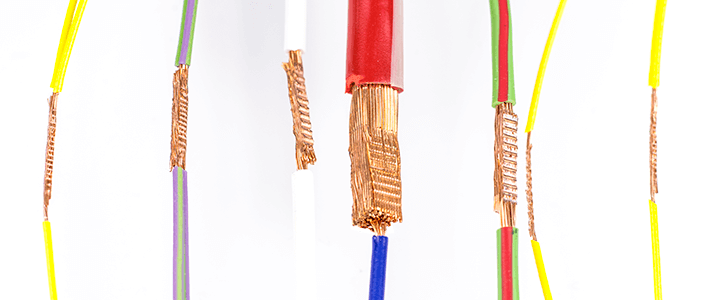

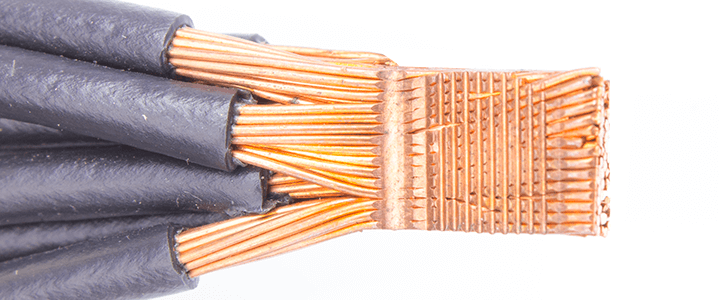

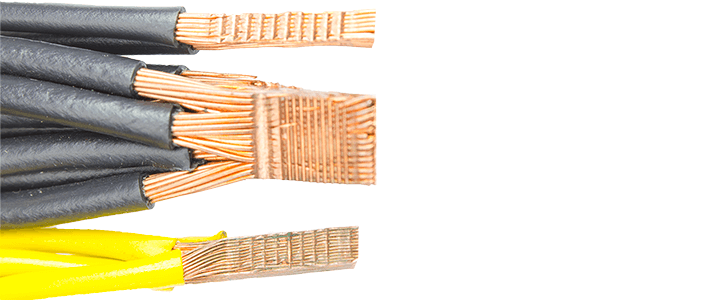

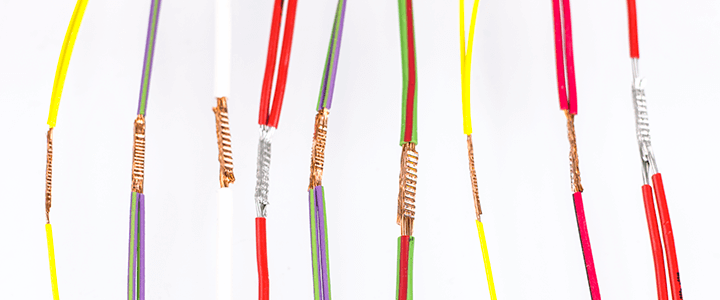

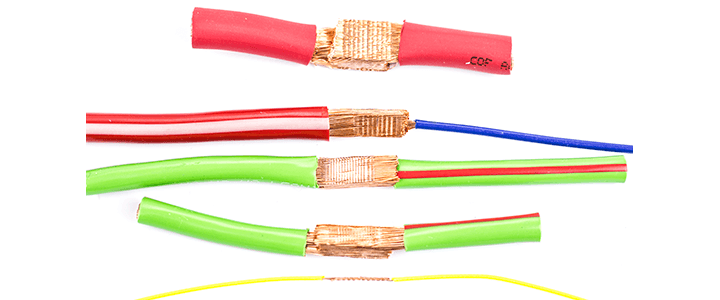

  • Wire Splicing

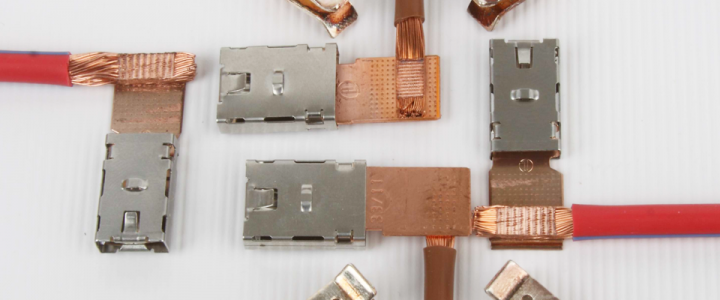

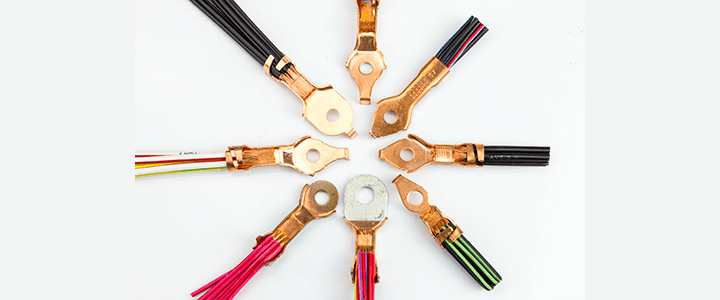

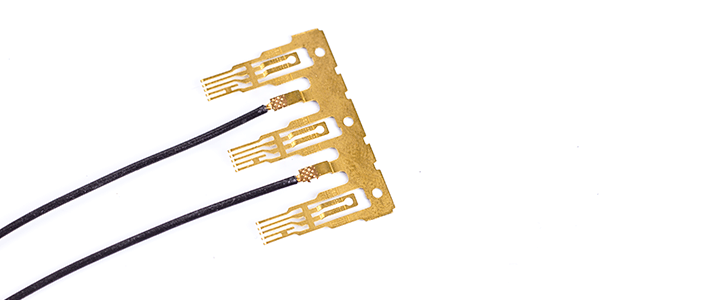

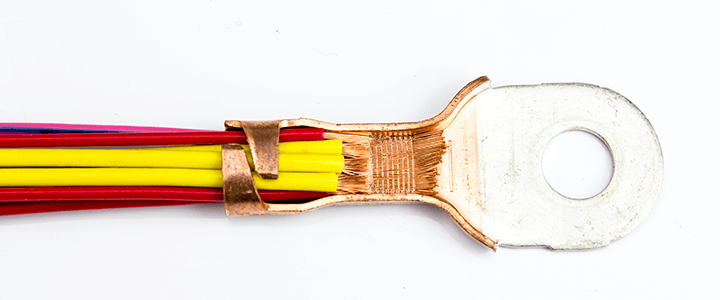

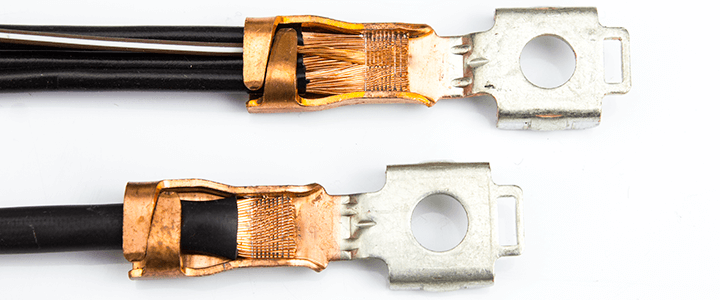

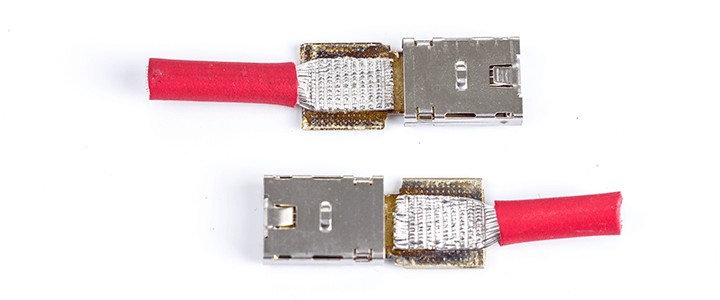

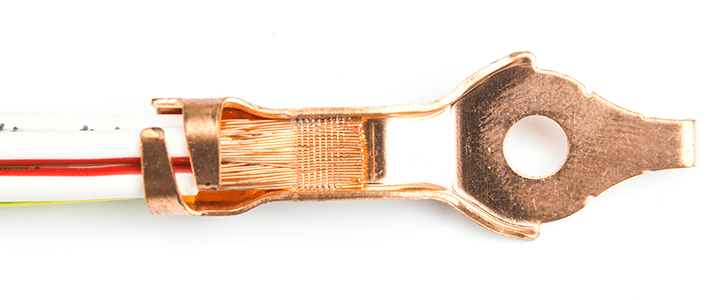

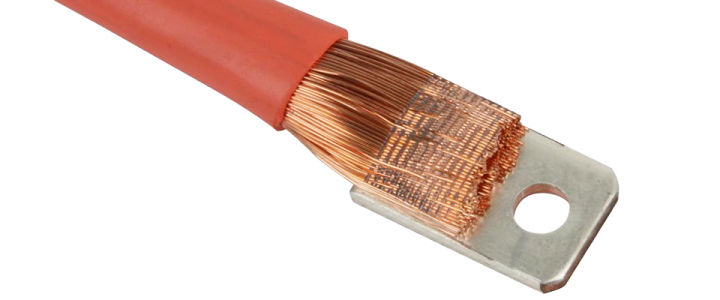

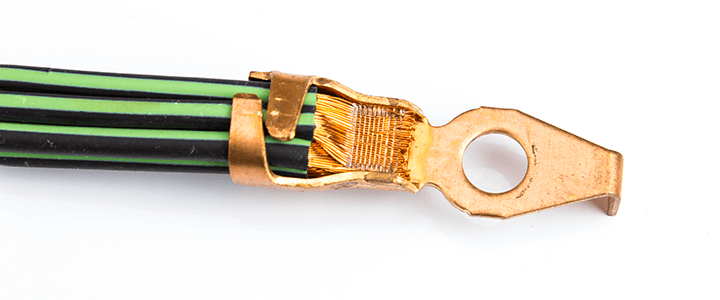

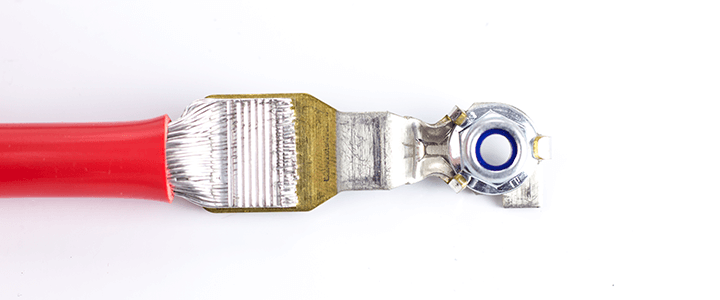

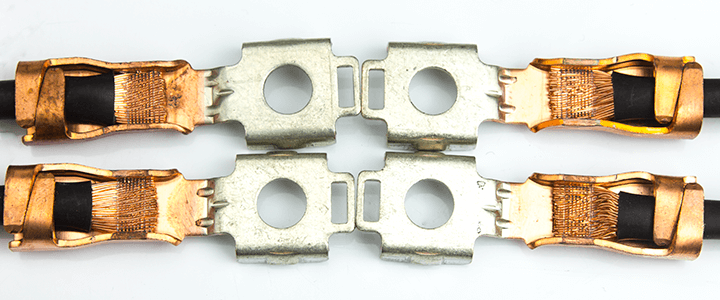

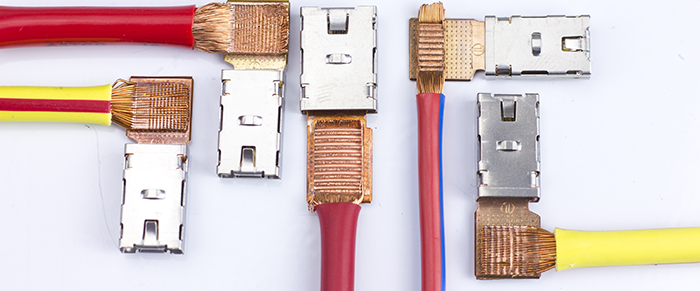

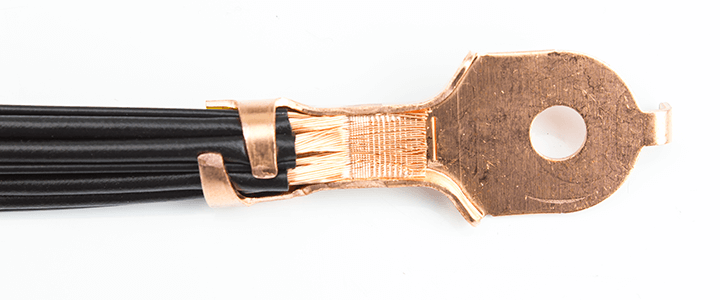

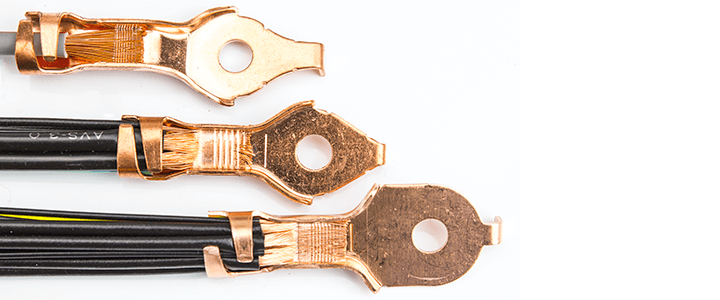

  • Wire Termination

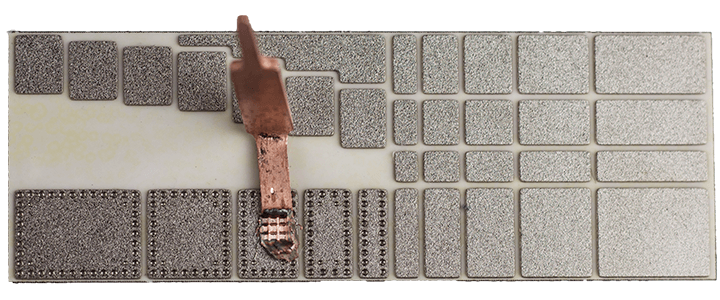

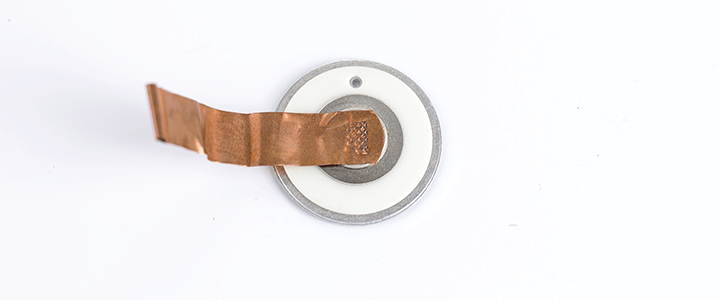

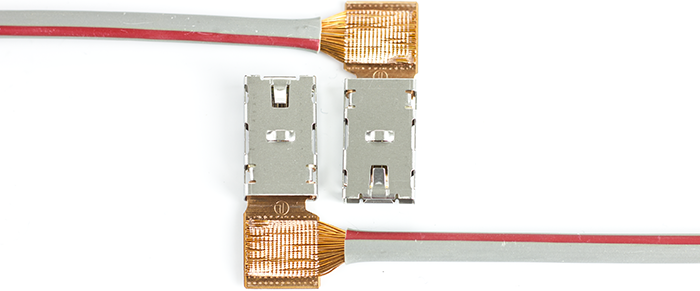

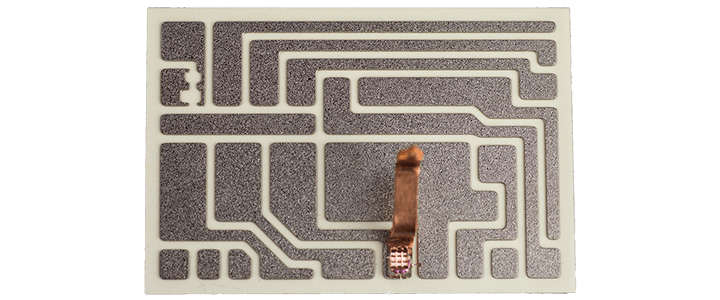

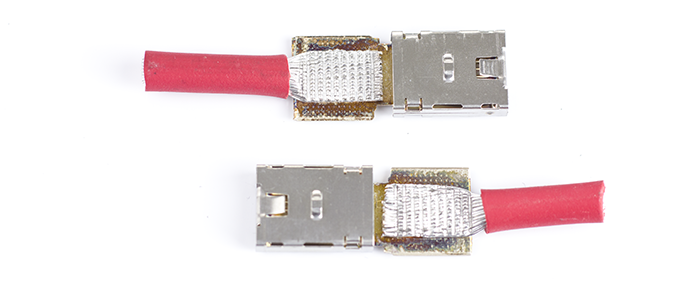

  • Flex Cable Termination

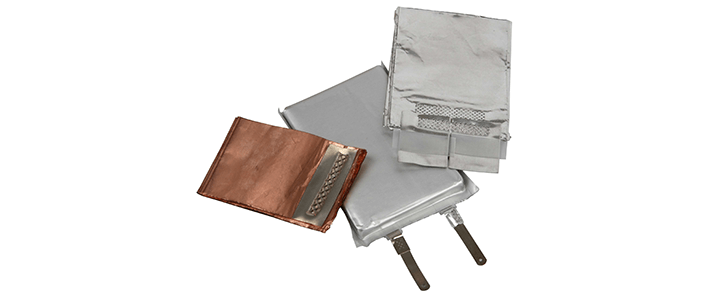

  • Batteries
  • Heat Sinks
  • Solar Panels

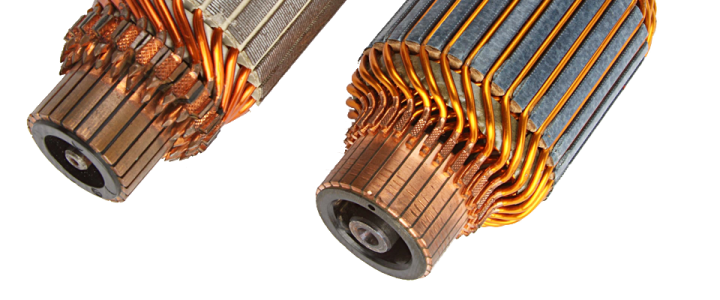

  • Coils
  • Contacts
  • Switches

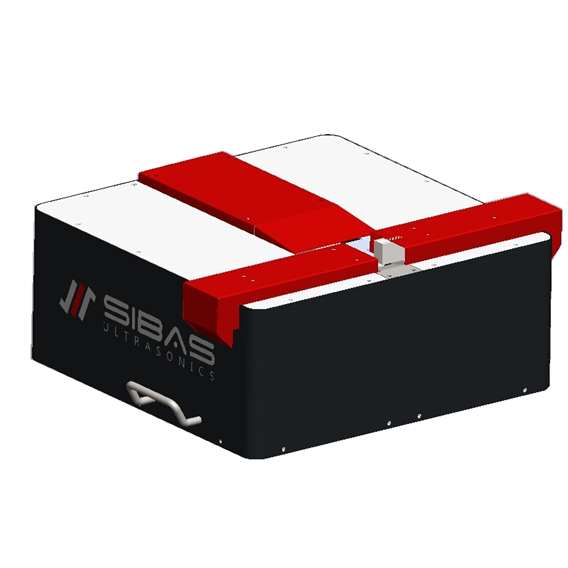

SMASH - Spot Continuous Welder

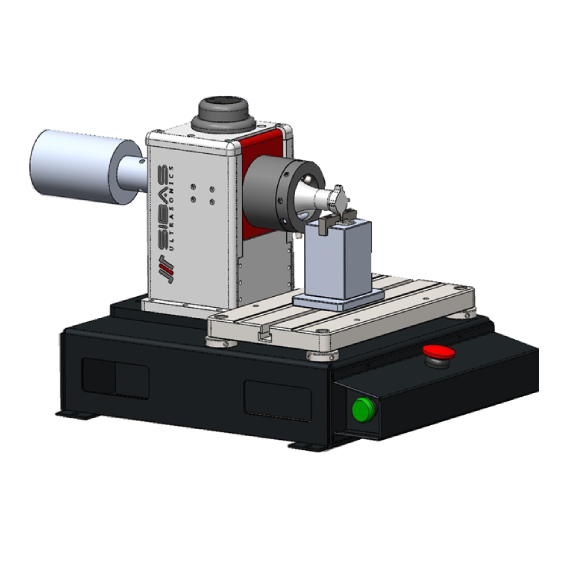

YOKE – Wire Splicer
